MULTICNC HOTKNIFE MACHINE

CNC Hot Knife can cut Thermocol upto 20kg/m3  automatically.

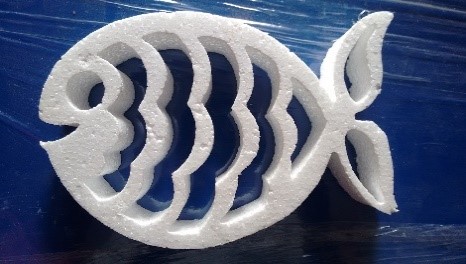

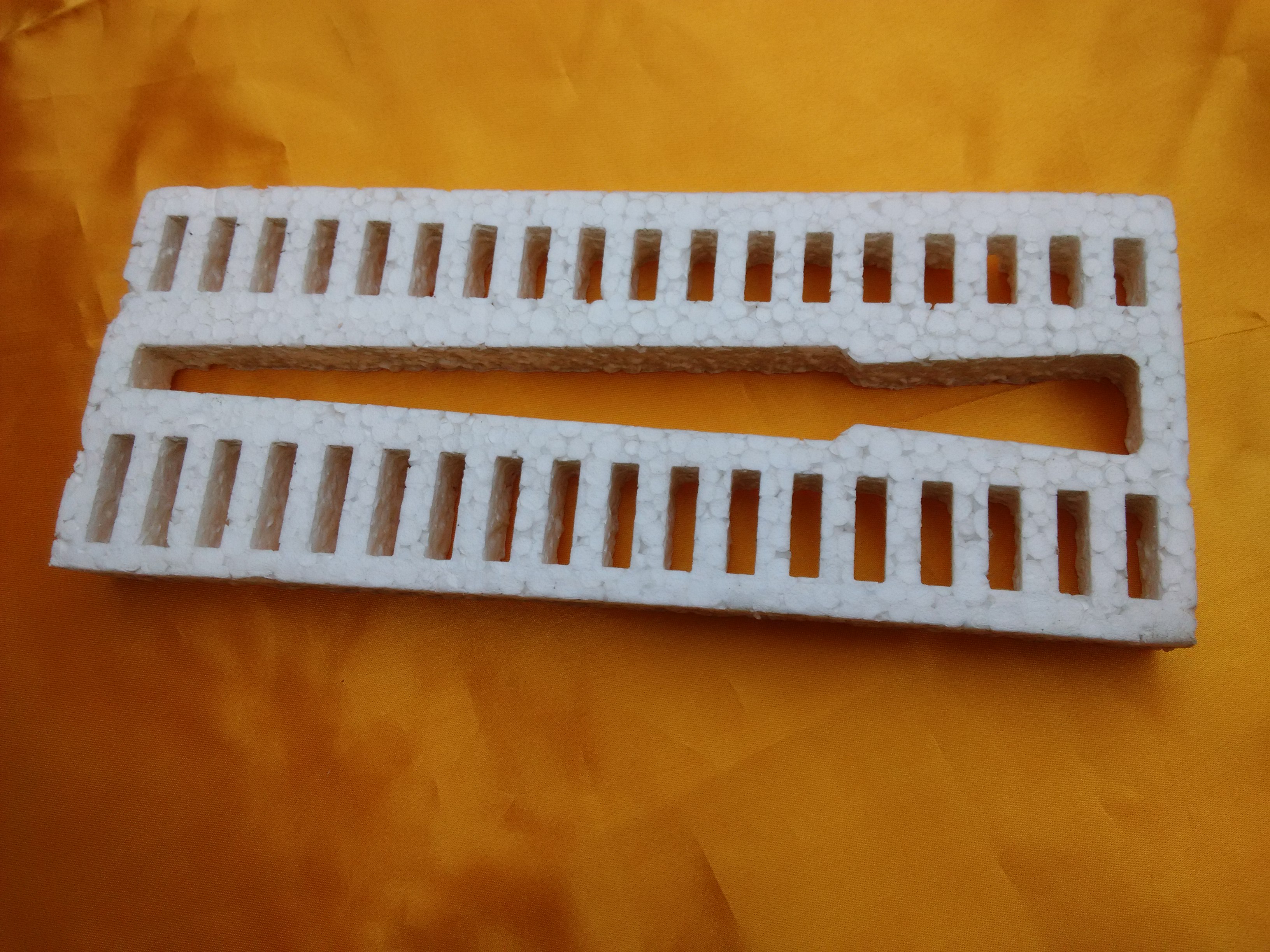

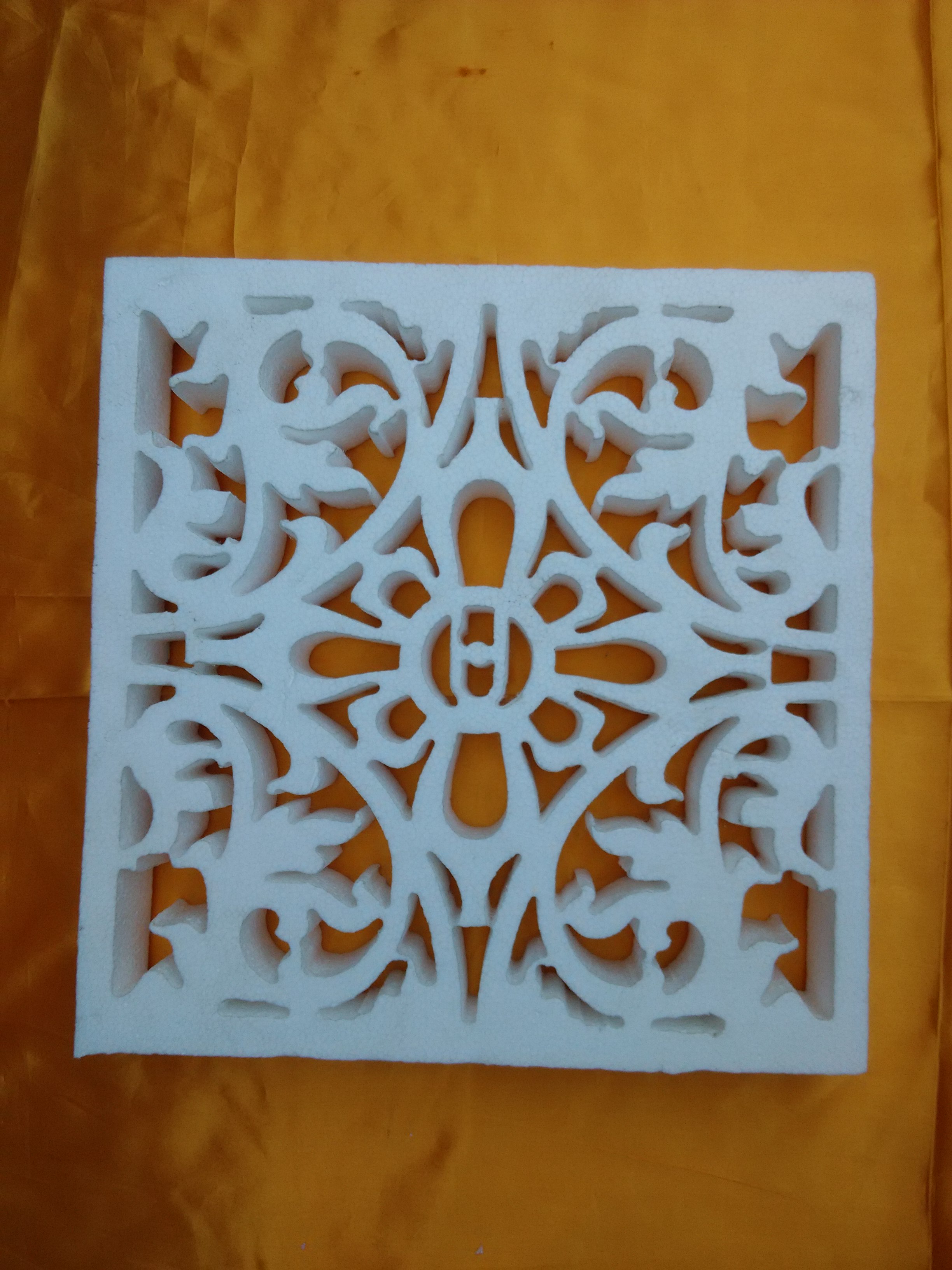

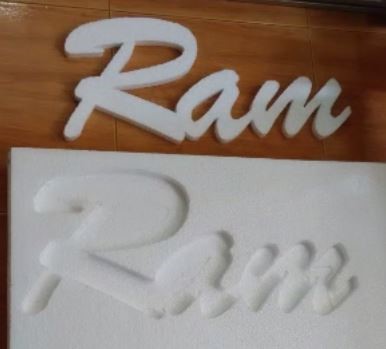

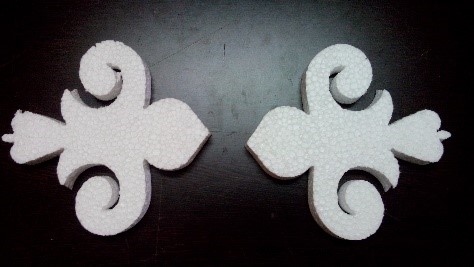

It can cut letter designs, jalli design and other decorative designs.

For CNC hotknife: we have 2 models:

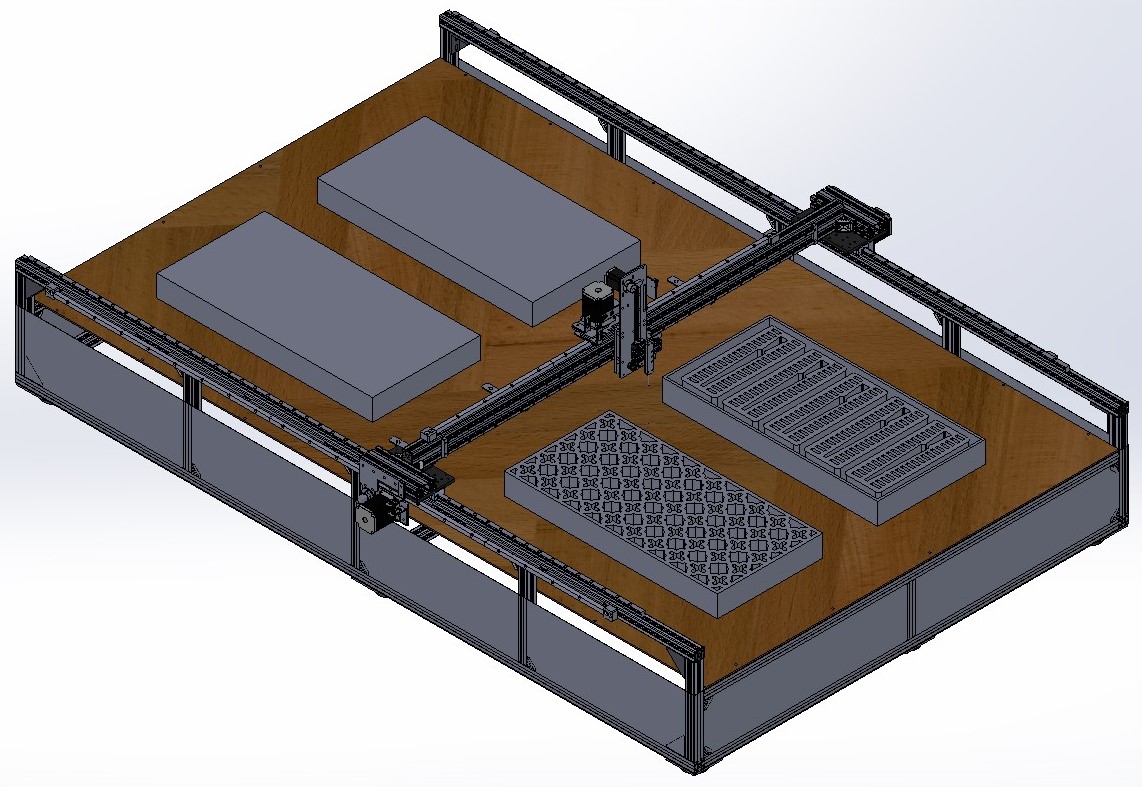

HD Model:

  • Rack pinion drive for X axis
  • Raised bed level
  • Stroke: upto 3mx1.5m
  • Advanced CNC controller with Industrial Panasonic PLC,
  • TowerLamp etc.

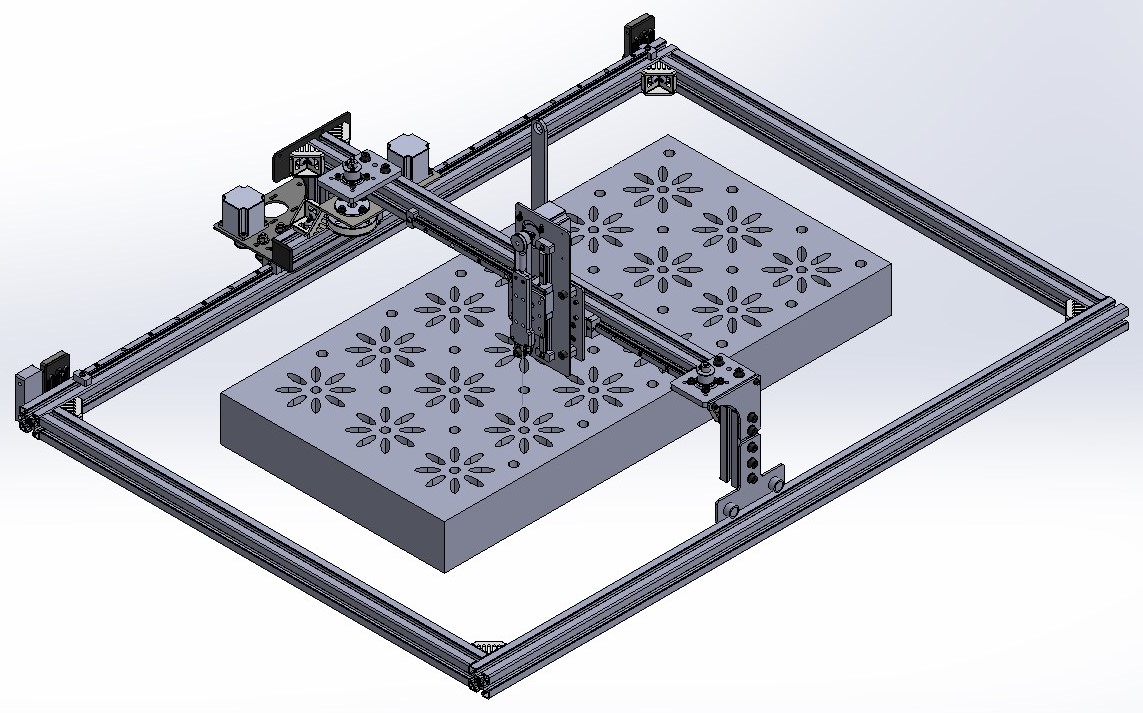

LITE Model:

  • Timer belt drive
  • Floor level
  • Stroke: 1m x 0.5m
  • Basic CNC controller.

 MACHINE SPECIFICATIONS

Machine  Size

From 1mx.5m to Custom size

Cutting Speed

1000 mm/min

Maximum Speed

2000mm/min

CAM Software

AUTOCAM 2D

CNC Control Software

MultiCNC

Power Consumption

1.6 amps

Cutting Thickness

4″

No. of Axis

3

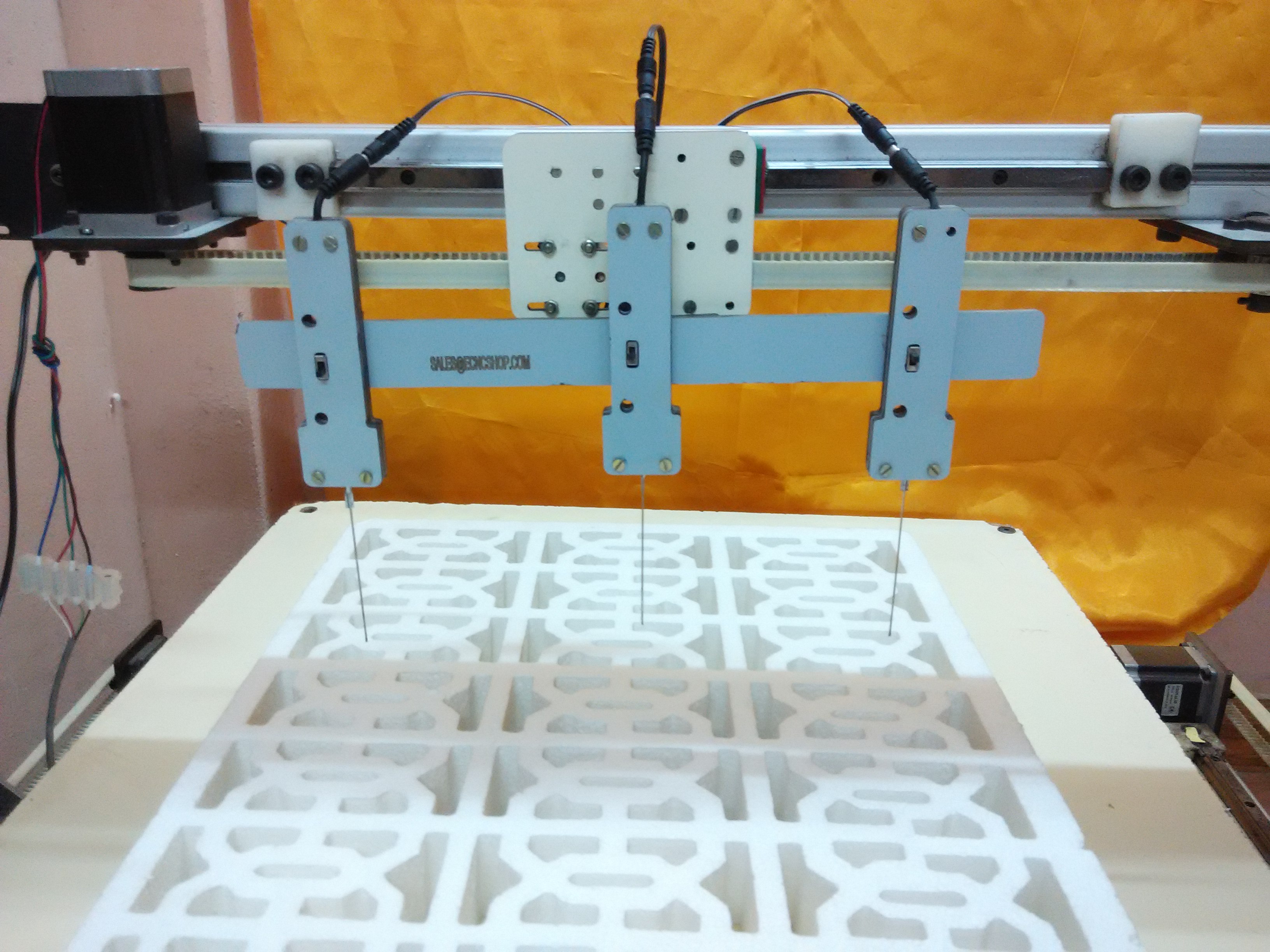

No. of Hotknife

Customizable

Material Can Cut

Thermocol, EPS Foam, EPE Foam (slow speeds)
