MULTICNC HOTWIRE MACHINE

CNC Hot wire can cut Thermocol upto 40kg/m3 automatically by using multiple strings (NiCr wire).

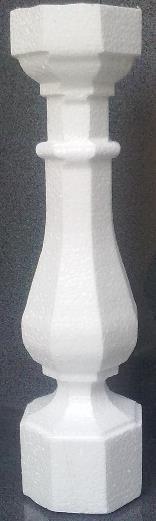

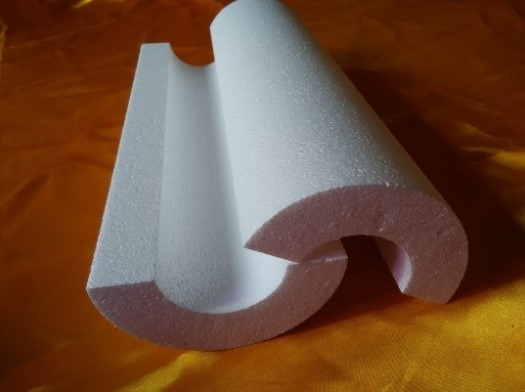

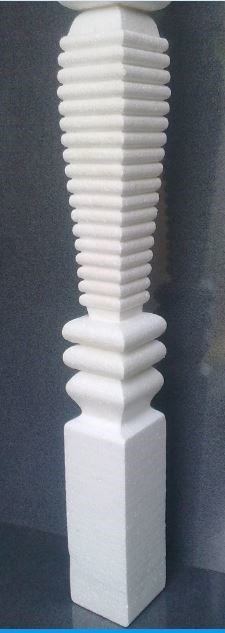

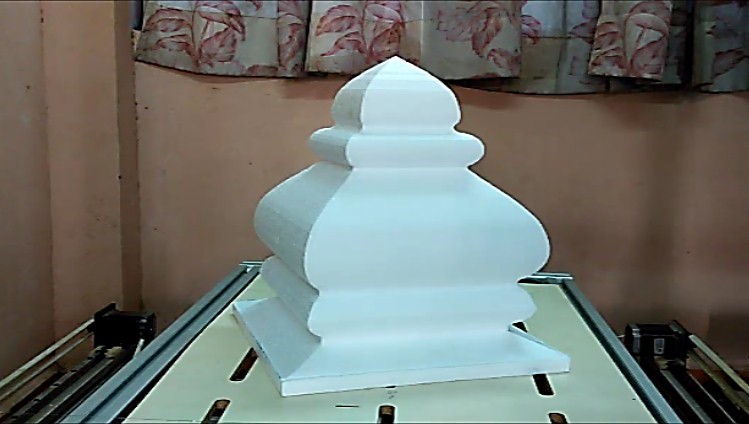

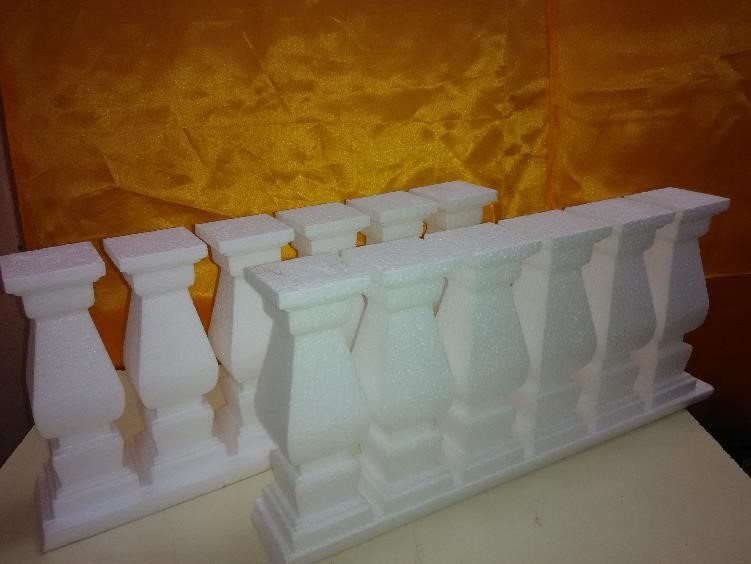

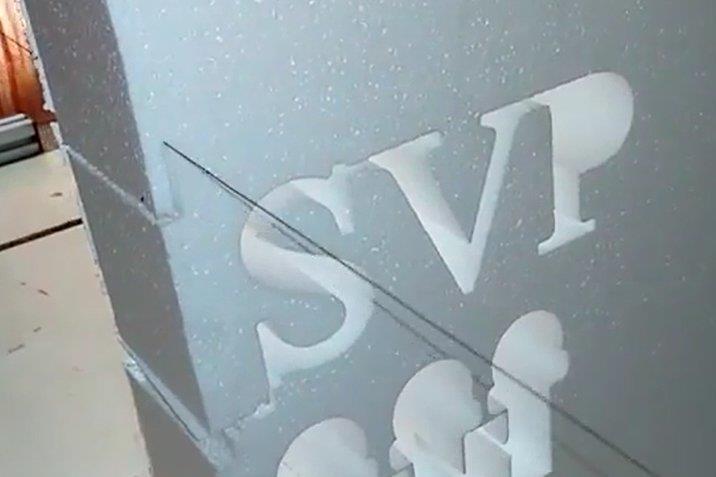

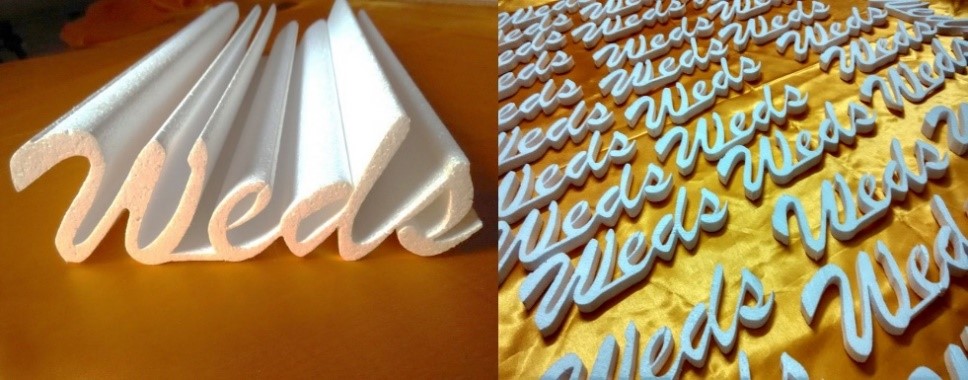

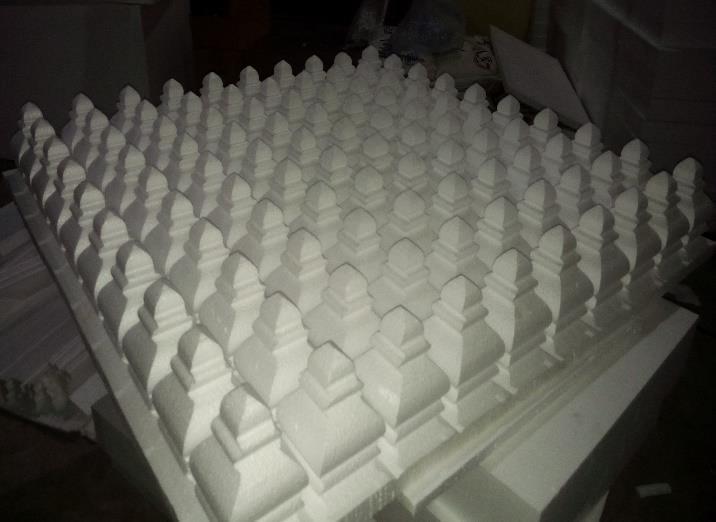

It can cut cursive letter, Dome arrays, Pillar arrays, Pipe section, Corner patti etc.

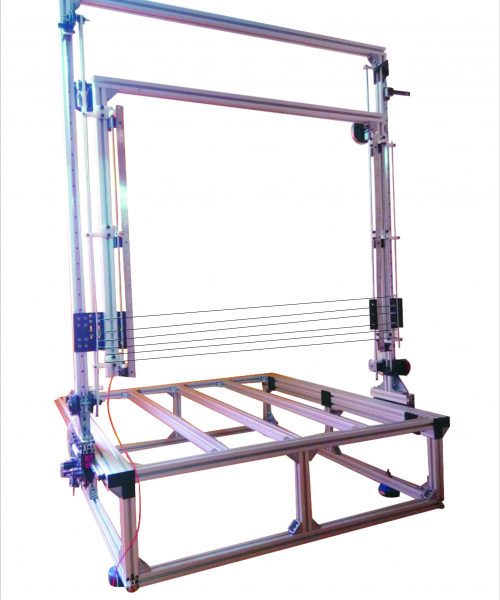

Hotwire HD Model

 MACHINE SPECIFICATIONS

Cutting  Size

4’x4′ or 8’x4′ or custom size on request

Foot print

2000x3000x2000 or 2000x3000x3000

Cutting speed

1000 mm/min

Maximum speed

2000 mm/min

CAM Software

AUTOCAM 2D

CNC Control Software

MultiCNC

Input Power

220v/50Hz single phase

Power Consumption

Min 500 watt, max 2000 watt

NiCr power source

36v, 40A AC Transformer with 10A dimmer

Controller

2 axis/ 3 axis/4 axis simultaneous control system

Resolution( XY)

0.1 mm

Axis driving motors

2.8 A, 1.8 Nm stepper motor

Drive system

X-axis – rack & pinion, Y-axis – timing belt

No. of axis

min 2, max 4

Maximum No. of NiCr String

30

APPLICAITON

  • PACKAGING
  • INSULATION (PIPE SECTION, ROOF INSULATION…)
  • EVENT DECORATIONS
  • SIGN MAKING
  • ARCHITECTURAL MODELS
  • MOVIE SET, ADVERTISEMENT PROP
  • PATTERN MAKING

OPTIONAL ACCESSORIES

  • 8X4 HOT WIRE MACHINE
  • MULTI STRING ATTACHMENT WITH SCALE
  • STATION ROTARY TURN TABLE (HORIZONTAL OR VERTICAL AXIS)
  • 4 AXIS or INDEPENDENT AXIS CUTTING (4 AXIS EXAMPLE – TAPER PILLAR CUTTING)
  • GANTRY ATTACHMENT FOR 3 AXIS CUTTING
  • BOSCH DREMEL SPINDLE FOR 2D/3D CUTTING
  • SINGLE or MULTIPLE HOT KNIFE FOR 2D CUTTING
  • ABRASIVE WIRE CUTTING FOR SOFT AND RIGID PUF
  • ROTOSCOOPTM FOR PACKAGING

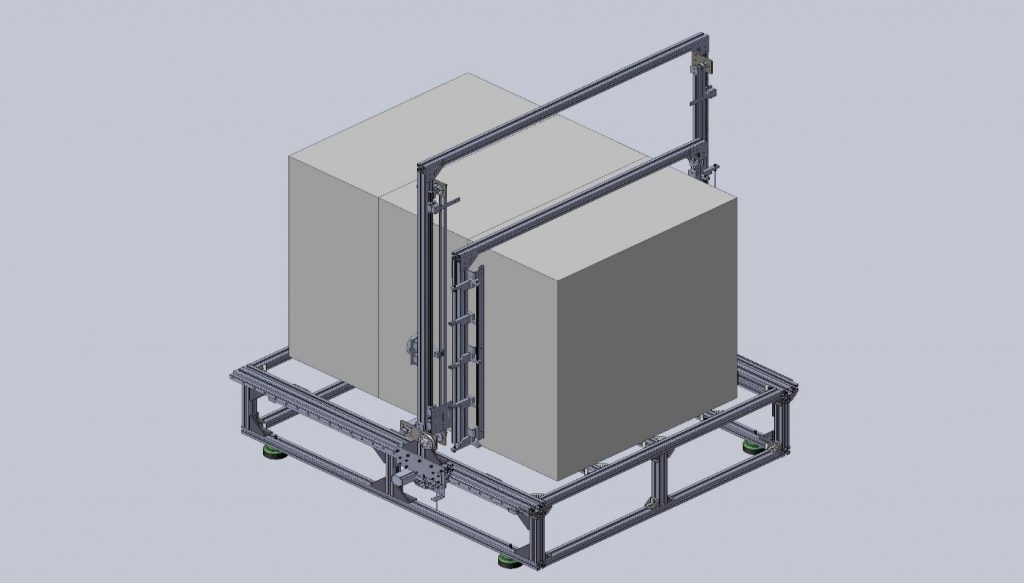

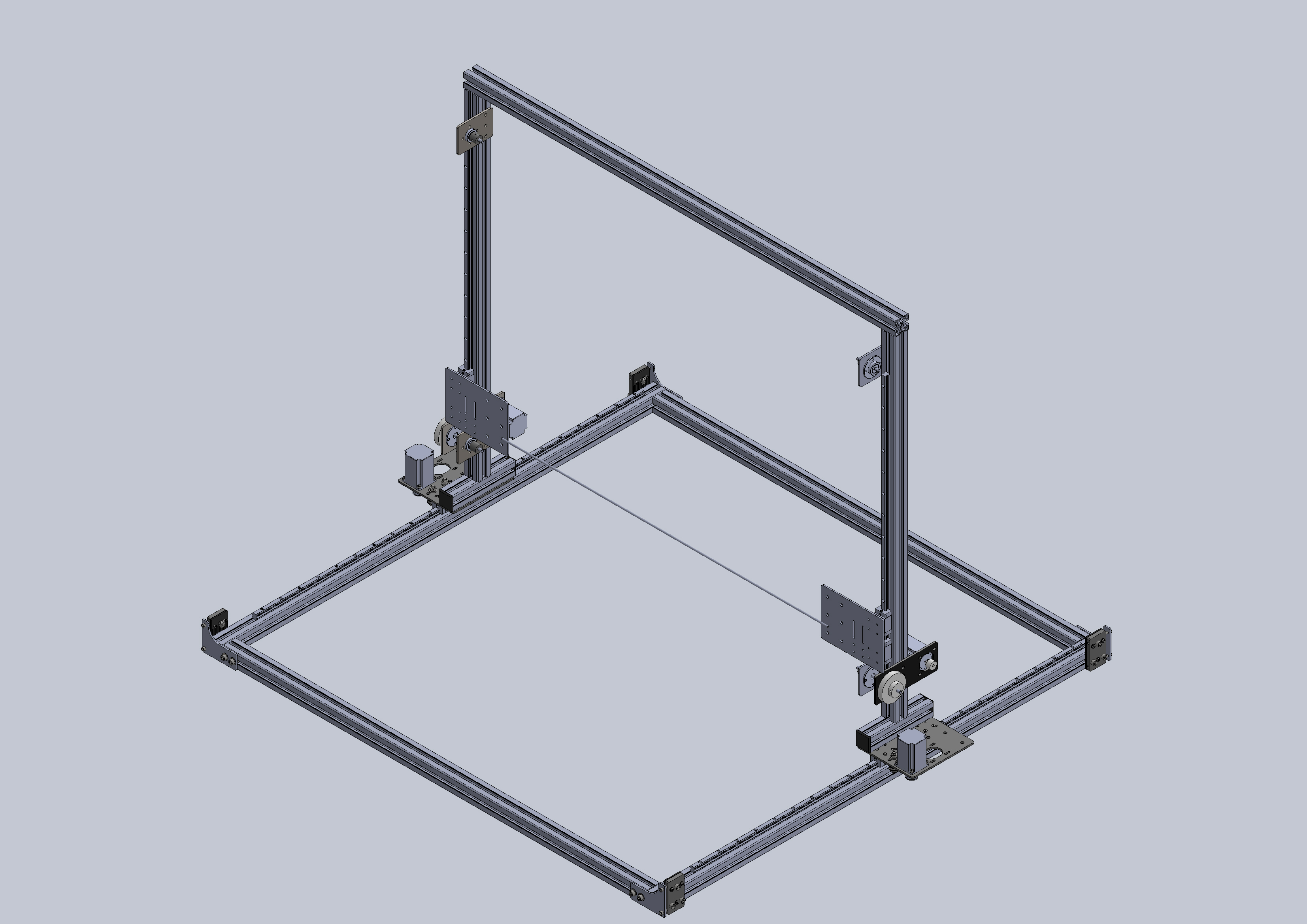

MULTICNC HOTWIRE MACHINE – LITE MODEL

CNC Hot wire can cut Thermocol upto 40kg/m3 automatically by using a single string (NiCr wire).

It can cut cursive letter, Dome arrays, Pillar arrays, Pipe section, Corner patti etc.

 MACHINE SPECIFICATIONS

Machine size from 1mx.6m to customize size
Cutting Speed 1000 mm/min
Maximum Speed 2000 mm/min
CAM Software AutoCAM 2D
CNC Control Software MultiCNC
Power Consumption Min 500 watt, max 2000 watt
No. of axis                    Min 2 , Max 4
No. of string             1

APPLICATION

  • PACKAGING
  • INSULATION (PIPE SECTION, ROOF INSULATION…)
  • EVENT DECORATIONS
  • SIGN MAKING
  • ARCHITECTURAL MODELS
  • MOVIE SET, ADVERTISEMENT PROP
  • PATTERN MAKING
