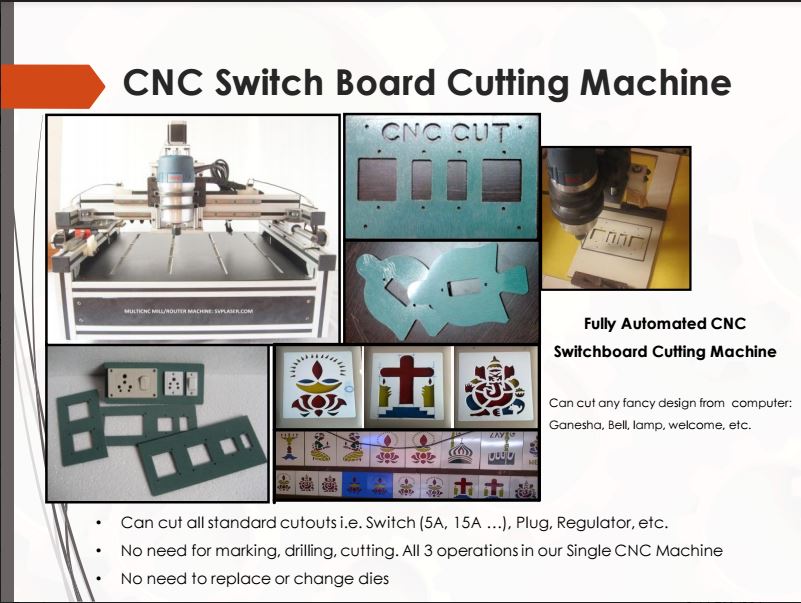

CNC SWITCH BOARD CUTTING MACHINE

  • CNC Switchboard cutting machine can cut any switchboard design directly from computer on to Hylam, Bakelite or FRP sheet : upto 1″ thickness.
  • Use for cutting hylam sheets for switch board, control panel mounting sheets, Electrical/Electronic components mounting sheet. Cut directly from CAD design in Computer.

MACHINE SPECIFICATIONS

 Stroke:

 600MM Wide(X) * 600MM Length(Y) *75MM Height (Z).(Customizable as per your requirement)

Max Traverse Speed:

  3000 mm/min

Spindle motor:

  BOSCH 1HP motor (RPM: 32000 )

 Axis motor:

Hybrid micro-stepping motors

Controller:

PC-based 3-axis CNC controller operated by G-codes3

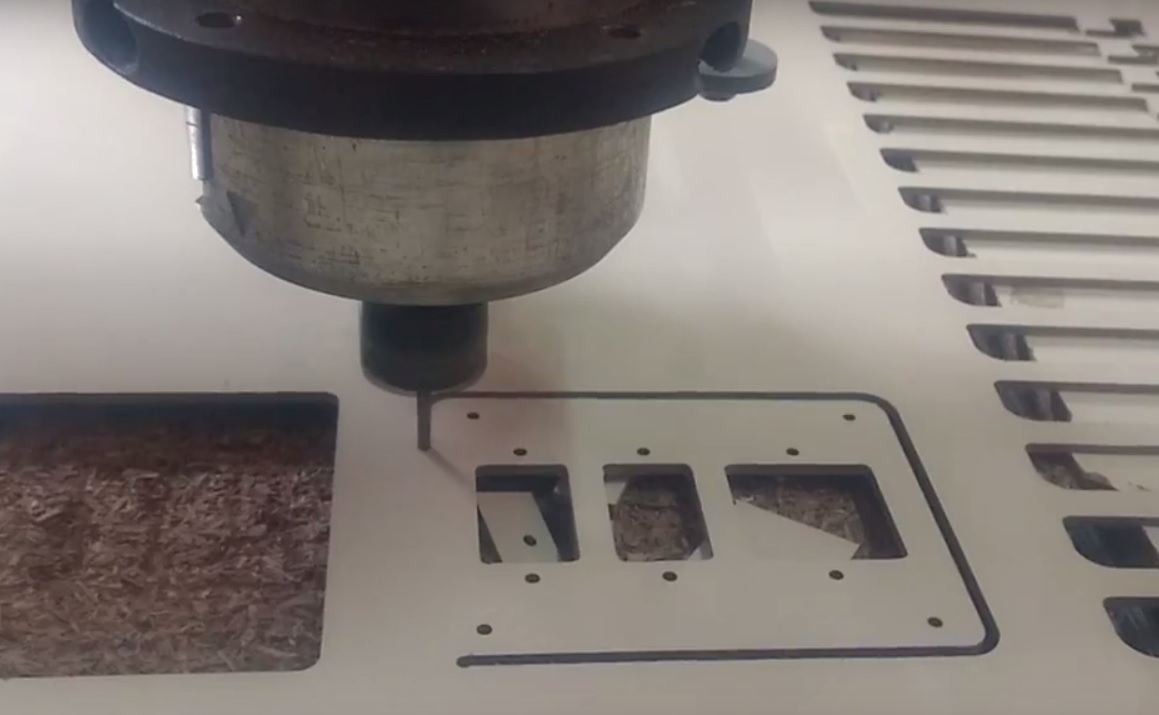

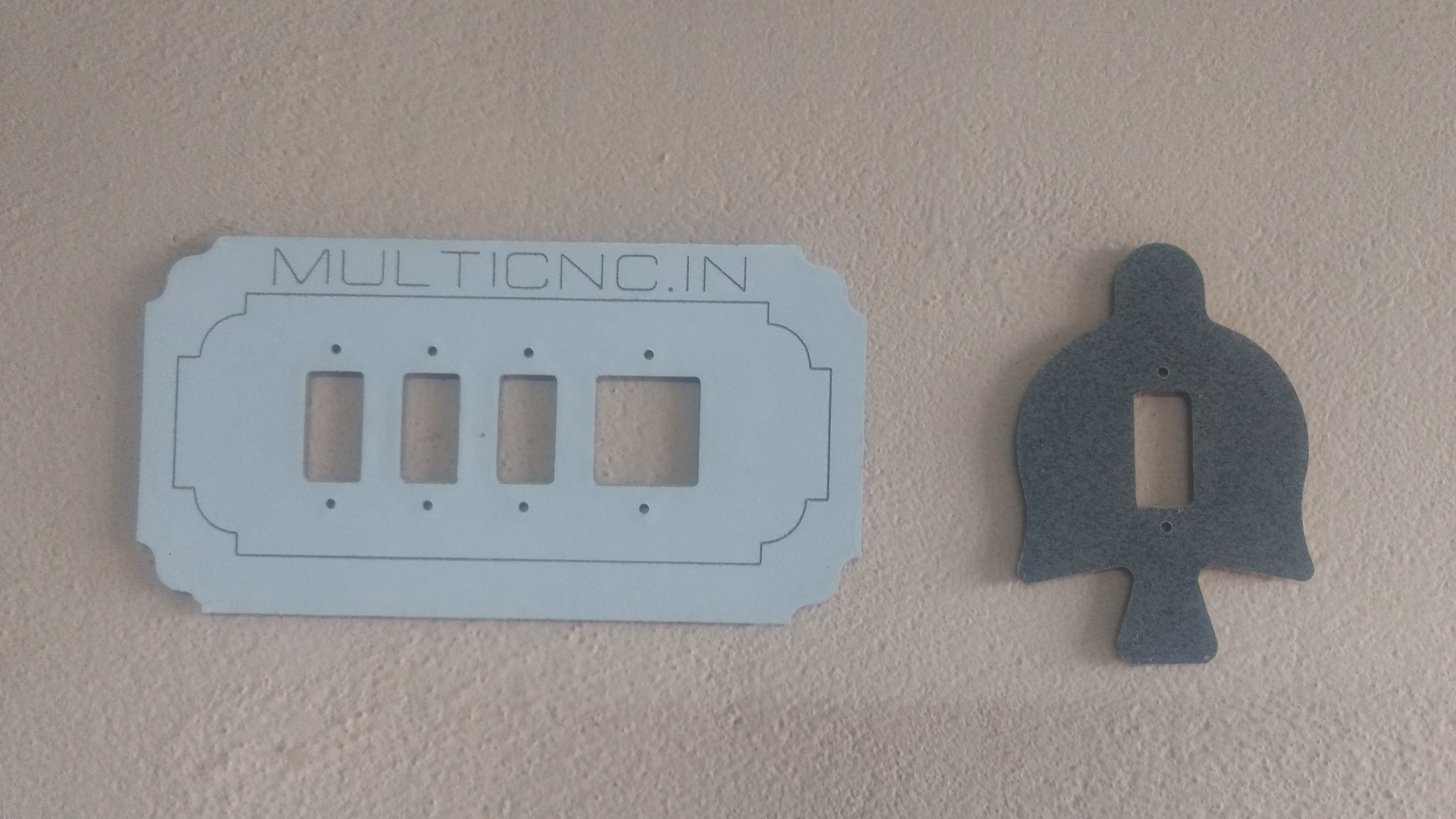

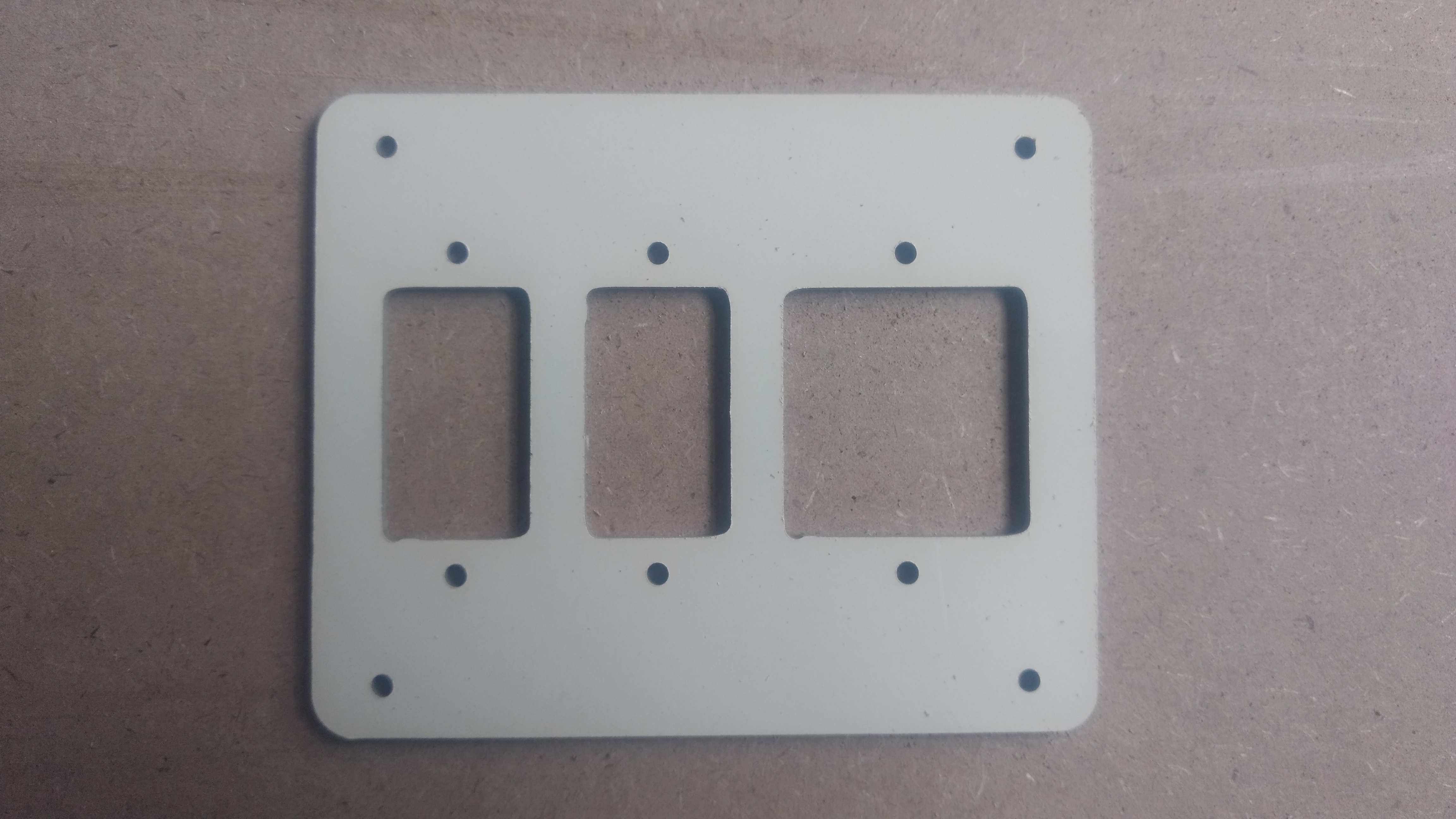

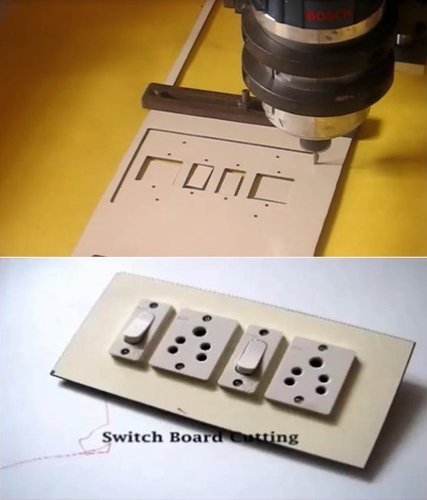

IMAGE GALLERY

 MULTICNC SWITCH BOARD CUTTING MACHINE
